高压三星1812/4532 贴片电容基本参数：
| 品牌 | Samsung/三星 | 型号 | 1812/4532 | 介质材料 | 陶瓷(瓷介) |
| 应用范围 | 高压 | 外形 | 方块状 | 功率特性 | 小功率 |
| 频率特性 | 低频 | 调节方式 | 固定 | 引线类型 | 无引线 |
| 允许偏差 | ±2（%） | 耐压值 | 3000（V） | 等效串联电阻(ESR) | 0（mΩ） |
| 标称容量 | 150pF~1000nF（uF） | 损耗 | 0 | 额定电压 | 100（V） |
| 绝缘电阻 | 0（mΩ） | 温度系数 | 0 |

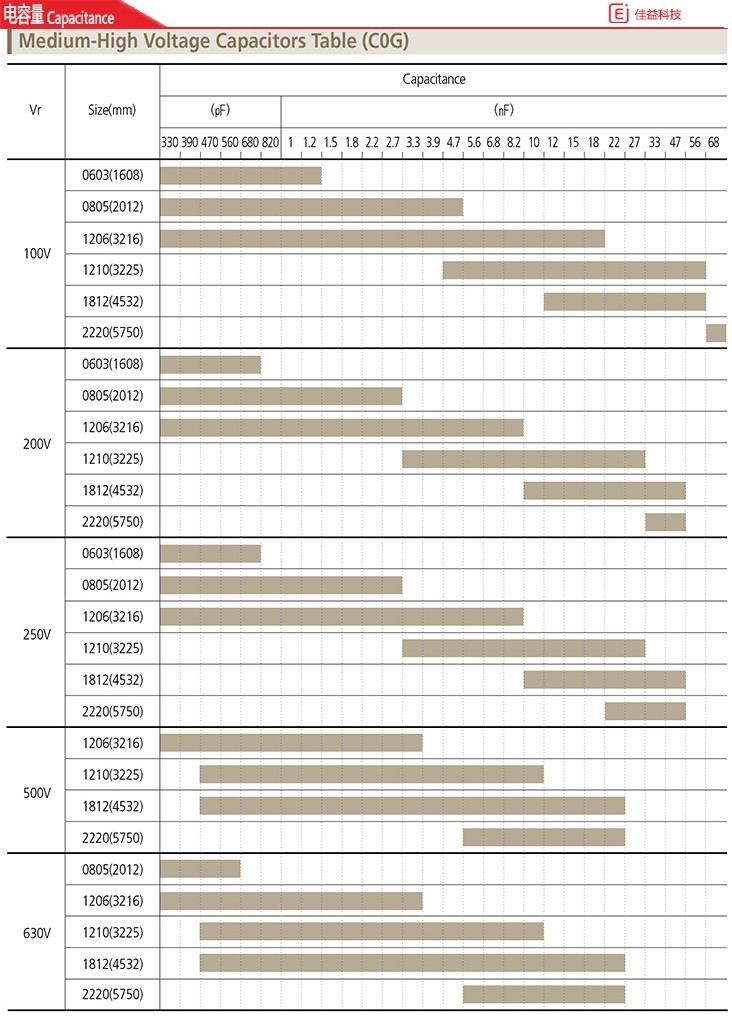

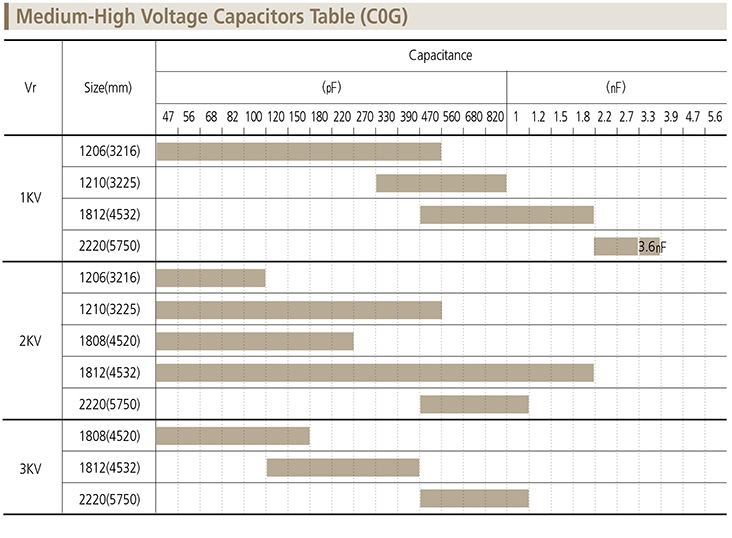

| Product Lineup (Medium-High Voltage Capacitors-COG)

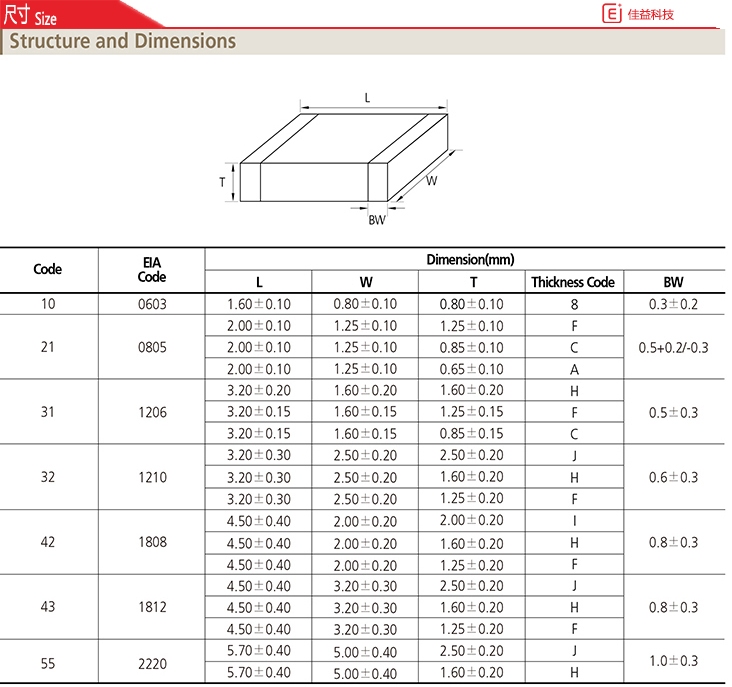

| Part Number | Size Lx W (mm) | Capacitance | Rated Voltage (Vdc) | Capacitance Tolerance | Thickness Max. (mm) | |
| 36 | CL31C102JCCNNN [ | 3.20x1.60 | InF | 100 | ±5% | 1.00 |
| 37 | CL31C102JGHNNN [ | InF | 500 | ±5% | 1.80 | |
| 38 | CL31C152JCCNNN [ | 1.5F | 100 | ±5% | 1.00 | |
| 39 | CL31C222JCCNNN [ | 2.2F | 100 | ±5% | 1.00 | |
| 40 | CL31C332JGHNNN | 3.3F | 500 | ±5% | 1.80 | |
| 41 | CL31C332JHHNNN [ | 3.3F | 630 | ±5% | 1.80 | |
| 42 | CL31C392JCHNNN [ | 3.9F | 100 | ±5% | 1.80 | |
| 43 | CL31C822JDHNNN 口 | 8.2F | 200 | ±5% | 1.80 | |
| 44 | CL31C822JEHNNN [ | 8.2 F | 250 | ±5% | 1.80 | |
| 45 | CL31C183JCHNNN [ | 18F | 100 | ±5% | 1.80 | |
| 1 | CL32C101JJFNNN 口 | 3.20x2.50 | 100pF | 2000 | ±5% | 1.45 |
| 2 | CL32C471JJJNNN | 470pF | 2000 | ±5% | 2.70 | |
| 3 | CL32C821JIJNNN 口 | 820 F | 1000 | ±5% | 2.70 | |
| 4 | CL32C103JGJNNN | 10F | 500 | ±5% | 2.70 | |
| 5 | CL32C103JHJNNN | 10F | 630 | ±5% | 2.70 | |
| 6 | CL32C273JDJNNN | 27F | 200 | ±5% | 2.70 | |
| 7 | CL32C273JEJNNN | 27F | 250 | ±5% | 2.70 | |
| 8 | CL32C563JCJNNN | 56F | 100 | ±50% | 2.70 | |
| 1 | CL42C100JKFNNN | 4.50x2.00 | 10pF | 3000 | ±50% | 1.45 |
| 2 | CL42C151JKINNN 口 | 150F | 3000 | ±5% | 2.20 | |
| 3 | CL42C221JJHNNN | 220pF | 2000 | ±5% | 1.80 | |
| 1 | CL43C391JKJNNN c | 4.50x3.20 | 390pF | 3000 | ±5% | 2.70 |
| 2 | CL43C102J I HNNN □ | InF | 1000 | ±5% | 1.80 | |
| 3 | CL43C122JIINNN 口 | 1.2 F | 1000 | ±5% | 2.20 | |
| 4 | CL43C182JIJNNN 口 | 1.8F | 1000 | ±5% | 2.70 | |
| 5 | CL43C182JJJNNN | 1.8F | 2000 | ±5% | 2.70 | |
| 6 | CL43C223JGJNNN | 22 F | 500 | ±5% | 2.70 | |
| 7 | CL43C223JHJNNN | 22 F | 630 | ±5% | 2.70 | |
| 8 | CL43C473JDJNNN | 47F | 200 | ±5% | 2.70 | |
| 9 | CL43C473JEJNNN | 47nF | 250 | ±5% | 2.70 | |
| 10 | CL43C563JCJNNN | 56F | 100 | ±5% | 2.70 | |
| 1 | CL55C102JJJNNN □ | 5.70x5.00 | InF | 2000 | ±5% | 2.70 |
| 2 | CL55C102JKJNNN | InF | 3000 | ±5% | 2.70 | |
| 3 | CL55C362JIJNNN | 3.6F | 1000 | ±5% | 2.70 | |
| 4 | CL55C223JGJNNN | 22 F | 500 | ±5% | 2.70 | |
| 5 | CL55C223JHJNNN | 22 F | 630 | ±5% | 2.70 | |
| 6 | CL55C473JDJNNN [ | 47F | 200 | ±5% | 2.70 | |
| 7 | CL55C473JEJNNN | 47F | 250 | ±5% | 2.70 | |
| 8 | CL55C683JCJNNN | 68F | 100 | ±5% | 2.70 |
■mu mark means packaging code. If you want to learn the code or quantity in detail, please see p80.
