风华0603/1608_贴片电容_片容

风华0603/1608_贴片电容_片容_贴片电容器

产品名称：风华0603/1608_贴片电容_片容_贴片电容器

所属类别：风华0603/1608_贴片电容_片容_贴片电容器

产品简介：贴片电容风华0603/1608，片容风华0603/1608，贴片电容器风华0603/1608电话：0769-89917065

详细介绍

风华06031608

风华0603/1608参数

品牌	FH/风华	型号	0603/1608	介质材料	陶瓷(瓷介)
应用范围	低压	外形	方块状	功率特性	小功率
频率特性	低频	调节方式	固定	引线类型	无引线
允许偏差	±5（%）	耐压值	50（V）	等效串联电阻(ESR)	0（mΩ）

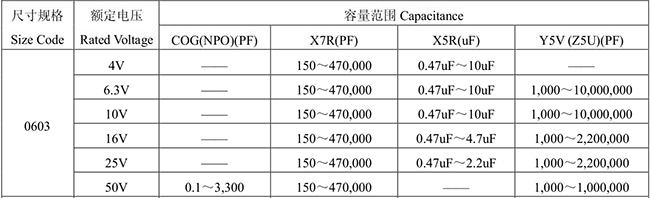

标称容量	0.47uF～10（uF）	损耗	0	额定电压	4（V）
绝缘电阻	0（mΩ）	温度系数	0

SUMMARY

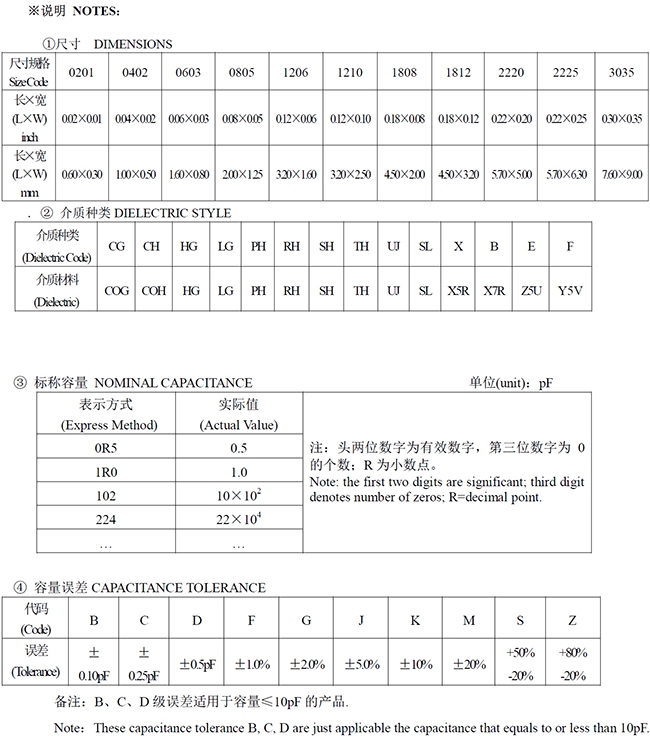

● Types of Dielectric Material and Capacitor
※HIGH FREQUENCY TYPE: The capacitor of this kind dielectric material is considered as ClassⅠcapacitor, including
high frequency COG、COH capacitor and temperature compensating capacitor such as HG, LG, PH, RH,SH, TH, UJ,
SL. The electrical properties of COG、COH capacitor are the most stable one and change invariablly with temperature,
voltage and time. They are suited for applications where low-losses and high-stability are required, HG， LG， PH， RH，
SH， TH， UJ， SL capacitor’s capacitance changes with temperature.They are suited for applications where low-losses
and temperature compensating circuits.

※Z5U：The capacitor made of this kind of material is considered as ClassⅡ capacitor, whose temperature characteristic
is between that of X7R and Y5V. The capacitance of this kind of capacitor is unstable and sensible to temperature and
voltage. Ideally suited for bypassing and decoupling application circuits operating with low DC bias in the environment
approaches to room temperature.※X7R、X5R：X7R、X5R material is a kind of material has high dielectric constant. The capacitor made of this kind
material is considered as Class Ⅱ capacitor whose capacitance is higher than that of class Ⅰ. These capacitors are
classified as having a semi-stable temperature characteristic and used over a wide temperature range, such in these
kinds of circuits, DC-blocking, decoupling, bypassing, frequency discriminating etc.
※Y5V：The capacitor made of this kind of material is the highest dielectric constant of all ceramic capacitors. They are
used over a moderate temperature range in application where high capacitance is required because of its unstable
temperature coefficient, but where moderate losses and capacitance changes can be tolerated. Its capacitance and
dissipation factors are sensible to measuring conditions, such as temperature and voltage, etc.
