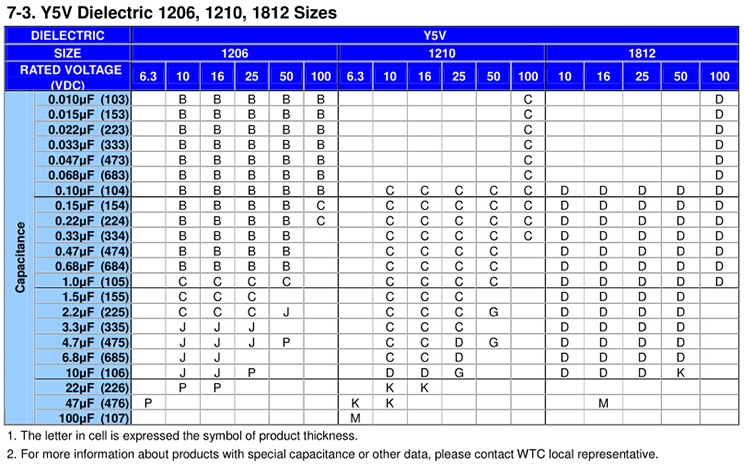

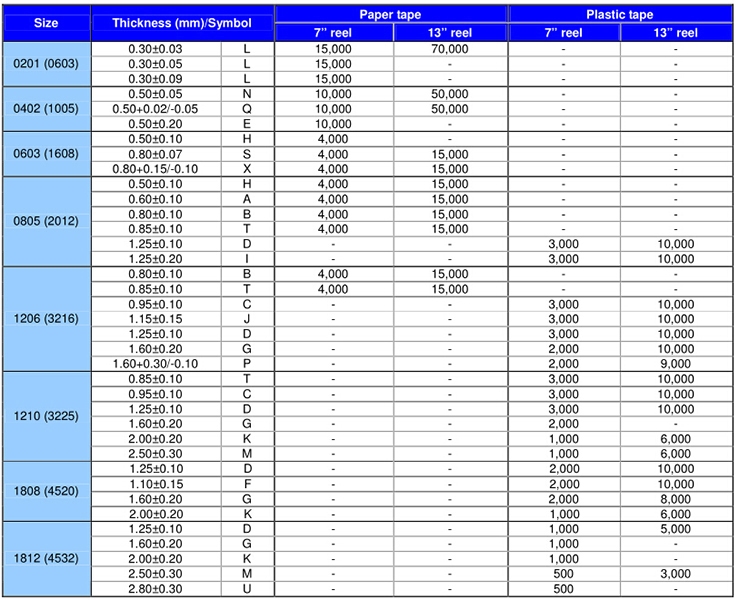

华新科1210/3225贴片电容参数
品牌 | WALSIN/华新科 | 型号 | 1210/3225 | 介质材料 | 陶瓷(瓷介) |
应用范围 | 低压 | 外形 | 方块状 | 功率特性 | 中功率 |
频率特性 | 中频 | 调节方式 | 微调 | 引线类型 | 无引线 |
允许偏差 | ±5(%) | 耐压值 | 100(V) | 等效串联电阻(ESR) | 0(mΩ) |
标称容量 | 100pF~220uF(uF) | 损耗 | 0 | 额定电压 | 6.3(V) |
绝缘电阻 | 0(mΩ) | 温度系数 | 0 |
华新科1210/3225 贴片电容 片容 贴片电容器安装
1) Please pay attention not to bend or distort the P.C. board after soldering in handling and storage,
otherwise the chip capacitor may crack .
Avoid the following:
2) When functional check of the P.C. board is performed, check pin pressure as it tends to be adjusted
higher for fear of loose contact. If the pressure is excessive and bends the P.C. board, it may crack
the chip capacitor or peel the terminations off.
Adjust the check pins not to bend the P.C. board
