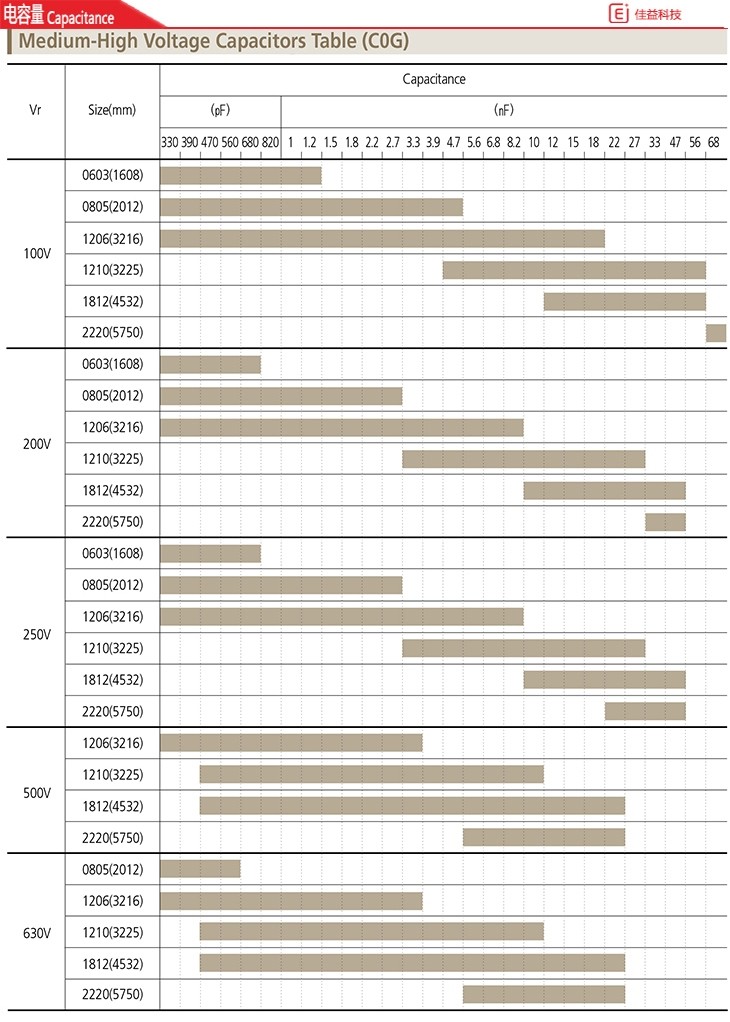

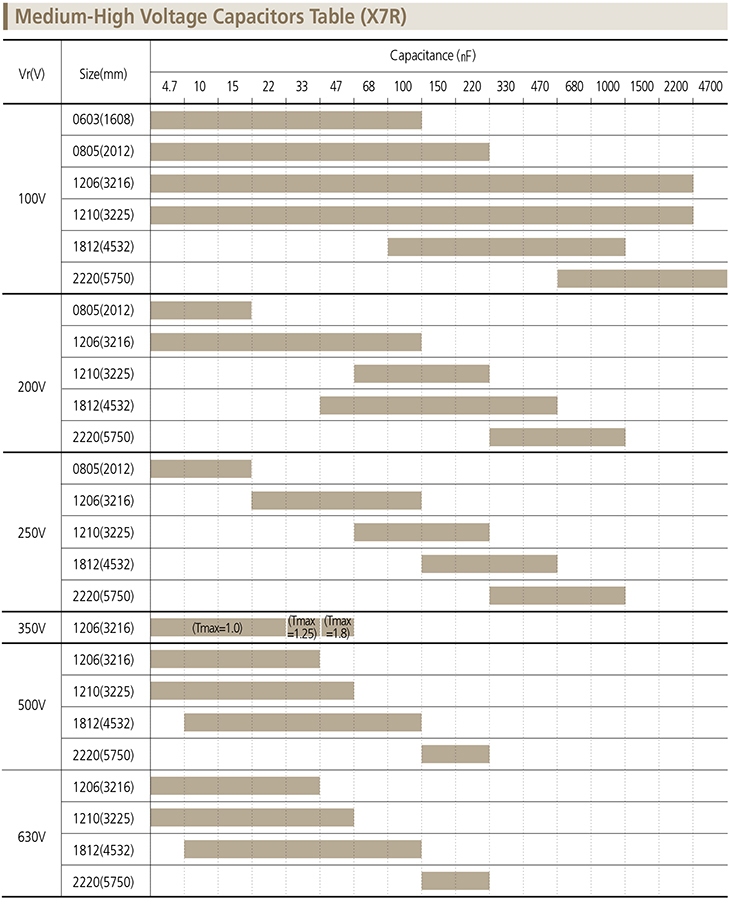

三星高压1206/3216贴片电容基本参数:
品牌 | Samsung/三星 | 型号 | 1206/3216 | 介质材料 | 陶瓷(瓷介) |
应用范围 | 高压 | 外形 | 方块状 | 功率特性 | 小功率 |
频率特性 | 低频 | 调节方式 | 固定 | 引线类型 | 无引线 |
允许偏差 | ±2(%) | 等效串联电阻(ESR) | 0(mΩ) | 标称容量 | 330pF~220nF(uF) |
损耗 | 0 | 额定电压 | 100(V) | 绝缘电阻 | 0(mΩ) |
温度系数 | 0 |
| Product Lineup (General Capacitors-COG)
Part Number | Size Lx W (mm) | Capacitance | Rated Voltage (Vdc) | Capacitance Tolerance | Thicknes s Max. (mm) | |
1 | CL05C0R5CB5NNN □ | 1.00x0.50 | 0.5pF | 50 | ±0.25pF | 0.55 |
2 | CL05CR75CB5NNN □ | 0.75pF | 50 | ±0.25pF | 0.55 | |
3 | CL05C010CB5NNN | 1.0pF | 50 | ±0.25pF | 0.55 | |
4 | CL05C1R2CB5NNN □ | 1.2 F | 50 | ±0.25pF | 0.55 | |
5 | CL05C1R5CB5NNN 口 | 1.5F | 50 | ±0.25pF | 0.55 | |
6 | CL05C1R8CB5NNN 口 | 1.8pF | 50 | ±0.25pF | 0.55 | |
7 | CL05C020CB5NNN | 2.0pF | 50 | ±0.25pF | 0.55 | |
8 | CL05C2R2CB5NNN | 2.2 pF | 50 | ±0.25pF | 0.55 | |
9 | CL05C2R4CB5NNN | 2.4pF | 50 | ±0.25pF | 0.55 | |
10 | CL05C2R5CB5NNN | 2.5pF | 50 | ±0.25pF | 0.55 | |
11 | CL05C2R7CB5NNN | 2.7pF | 50 | ±0.25pF | 0.55 | |
12 | CL05C030CB5NNN | 3.0pF | 50 | ±0.25pF | 0.55 | |
13 | CL05C3R3CB5NNN | 3.3pF | 50 | ±0.25pF | 0.55 | |
14 | CL05C3R5CB5NNN 口 | 3.5pF | 50 | ±0.25pF | 0.55 | |
15 | CL05C3R6CB5NNN | 3.6pF | 50 | ±0.25pF | 0.55 | |
16 | CL05C3R9CB5NNN | 3.9pF | 50 | ±0.25pF | 0.55 | |
17 | CL05C040CB5NNN | 4.0pF | 50 | ±0.25pF | 0.55 | |
18 | CL05C4R3CB5NNN | 4.3pF | 50 | ±0.25pF | 0.55 | |
19 | CL05C4R7CB5NNN | 4.7pF | 50 | ±0.25pF | 0.55 | |
20 | CL05C050DB5NNN 口 | 5.0pF | 50 | ±0.5pF | 0.55 | |
21 | CL05C5R6DB5NNN | 5.6pF | 50 | ±0.5pF | 0.55 | |
22 | CL05C060DB5NNN | 6.0pF | 50 | ±0.5pF | 0.55 | |
23 | CL05C6R2DB5NNN 口 | 6.2 pF | 50 | ±0.5pF | 0.55 | |
24 | CL05C6R8DB5NNN | 6.8pF | 50 | ±0.5pF | 0.55 | |
25 | CL05C070DB5NNN 口 | 7.0pF | 50 | ±0.5pF | 0.55 | |
26 | CL05C080DB5NNN 口 | 8.0pF | 50 | ±0.5pF | 0.55 | |
27 | CL05C8R2DB5NNN 口 | 8.2 pF | 50 | ±0.5pF | 0.55 | |
28 | CL05C090DB5NNN | 9.0pF | 50 | ±0.5pF | 0.55 | |
29 | CL05C9R1DB5NNN □ | 9.1 pF | 50 | ±0.5pF | 0.55 | |
30 | CL05C100JB5NNN □ | 10pF | 50 | ±50% | 0.55 | |
31 | CL05C110JB5NNN □ | 11pF | 50 | ±5% | 0.55 | |
32 | CL05C120JB5NNN □ | 12pF | 50 | ±5% | 0.55 | |
33 | CL05C130JB5NNN □ | 13pF | 50 | ±5% | 0.55 | |
34 | CL05C150JB5NNN □ | 15pF | 50 | ±5% | 0.55 | |
35 | CL05C160JB5NNN | 16pF | 50 | ±5% | 0.55 | |
36 | CL05C180JB5NNN | 18pF | 50 | ±5% | 0.55 | |
37 | CL05C200JB5NNN □ | 20pF | 50 | ±5% | 0.55 | |
38 | CL05C220JA5NNN □ | 22 pF | 25 | ±5% | 0.55 | |
39 | CL05C220JB5NNN □ | 22 pF | 50 | ±5% | 0.55 | |
40 | CL05C240JB5NNN □ | 24pF | 50 | ±5% | 0.55 | |
41 | CL05C270JB5NNN 口 | 27pF | 50 | ±5% | 0.55 | |
42 | CL05C270JA5NNN | 27pF | 25 | ±5% | 0.55 | |
43 | CL05C300JB5NNN 口 | 30pF | 50 | ±5% | 0.55 | |
44 | CL05C330JB5NNN 口 | 33pF | 50 | ±5% | 0.55 | |
45 | CL05C360JB5NNN 口 | 36pF | 50 | ±5% | 0.55 | |
46 | CL05C390JB5NNN 口 | 39pF | 50 | ±5% | 0.55 | |
47 | CL05C430JB5NNN 口 | 43 pF | 50 | ±5% | 0.55 | |
48 | CL05C470JB5NNN 口 | 47pF | 50 | ±5% | 0.55 | |
49 | CL05C510JB5NNN □ | 51 pF | 50 | ±5% | 0.55 | |
50 | CL05C560JB5NNN | 56pF | 50 | ±5% | 0.55 |
※口mark means packaging code. If you want to learn the code or quantity in detail, please see p80.
※ For parts of higher capacitance than those above listed, refer to the product lineup of'High
Capacitance' subcategory.
